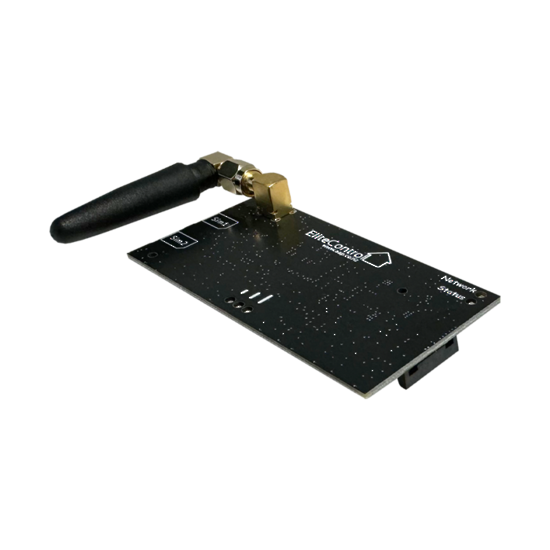

EC-I 4G PLUG ON 4G CELLULAR MODULE FOR EC-I AND EC-PCB

The EC-i 4G unit is a plug on GSM module for the EC / EC-i control panels. It is connected directly to the control panel, plugging on to expansion header A.

Specifications:-

4G supporting GSM B3/8 & LTE on B1/3/7/8/20/28

Dual sim with auto switching between sims

Carrier independent, also supports MVNOs

Supply your own sim

Direct connection to control panel, not via field wiring

Supplied with 200mm antenna extension terminated with chassis mount SMA

Supplied with antenna

Supports

Reporting via IP protocols (Alarms CSV, Patriot & DC-09)

Remote programming via Elite Cloud service

Remote control via Elite Cloud APP

Alarm reporting to Elite Cloud APP

Requires panel firmware 10.3.42 upwards
