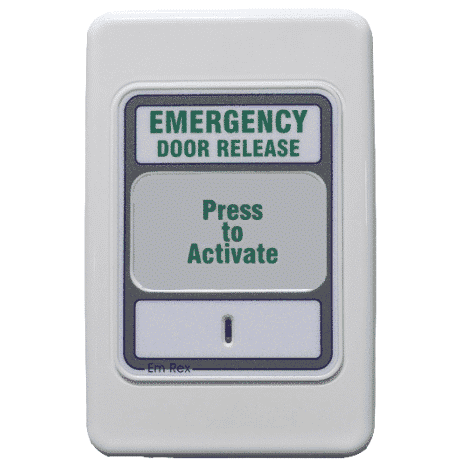

EM REX – TROJAN WALL PLATE EM REX EMERGENCY DOOR RELEASE BUTTON

The Em-Rex® (Emergency Exit Device) is an emergency door release unit, which can be used on its own or in conjunction with the Prox-Rex units, to make up a total access controlled exit solution.

Features

Field re-settable unit, a reset tool is supplied with every unit

No breaking of glass to operate

Two outputs; one set to break lock power and one set for status monitoring

Visual confirmation of activation

Audible conformation of activation

Ancillary input for remote operation of sounder

Minimal moving parts

Complies with local codes for emergency egress

Specifications

Single gang profile fits standard electrical flush box

Power requirements 9 to 16Vdc (only if using on board sounder)

10mA at 13.6 Vdc

Two sets Clean N/O and N/C outputs (Changes status upon activation)

The contacts are rated at 1 Amp 30Vdc

The faceplate will not deteriorate over time and is easily cleaned.

C-Tick Certified & complies with RoHS and BS 5839 Pt 2. Standard for “Break-Glass Panels”
