LOCKWOOD 3570HRGKIT HI-O 2 DOOR ROOM GUARD KIT EXCL. FURN
The Room Guard Locking System is based on state of the art Hi-O technology platform
Bringing a new dimension to electronic locking systems as we know them today, the Hi-O platform has enabled this unique product offering that is designed for ease of use and simplified installation.
The system provides electronic lock control of multiple doors for any room requiring privacy by the occupants. The most common applications are shared bathrooms in hospitals and conference rooms with dual entries. The intelligence is embedded in the locking devices themselves, resulting in a plug and play system without the need for a door controller to lock and unlock the door; therefore extremely easy to install and cost effective.
Features
One touch privacy
All components supplied in one neat kit
Plug and Play connectivity
No requirement for external door controller or EAC system
Fast, accurate and cost effective installation
Applications
Shared bathrooms
Conference rooms
Laboratories

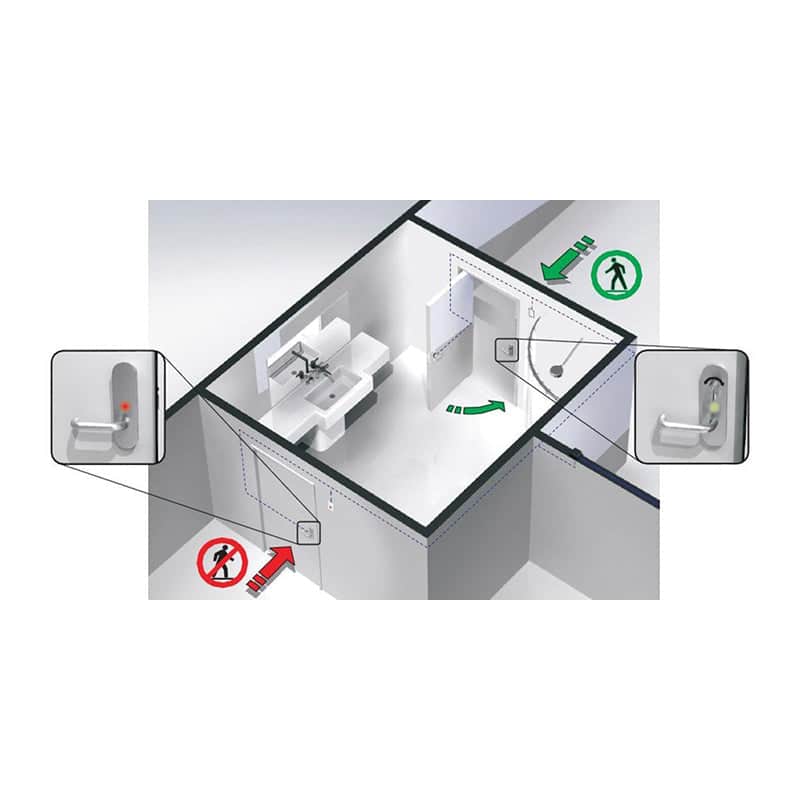

Function
Locking the door
Enter either door and close door
Activate internal turn knob
Both doors automatically lock – outside
External handles indicate red (locked)
To unlock/exit
Activate internal lever on either door
Both doors automatically unlock
External handles indicate green (unlocked)
Note: In the event of an emergency, the doors may be unlocked externally via emergency override switches if fitted.Standards and ComplianceSuccessfully fire rated up to 4hrs on fire doorHour assemblies in accordance with AS1905.1.2007
Specification
Installation OverviewThe Room Guard Locking System does not require an external door controller to lock or unlock the door. The electric mortice locks are simply plugged together, connected to the emergency override switches and then plugged into the power supply.
Note: The use of emergency override switches may not be required. In that case, the power supply is connected directly to mortice locks.
Room Guard Kit – Contents
Hi-O Room Guard Mortice Lock x2
Power Transfer x2
Room Guard Turn Knob Assembly x2
24Vdc Power supply unit x1
4 Way Adaptor x1
Override Switch Wire – 15M x2
8M Extension Cable x2
Terminal Strip Adaptor (PAIR) x1
Hi-O Termination Socket x1
Emergency Switch x2
Faceplate for Emergency Switch x2
