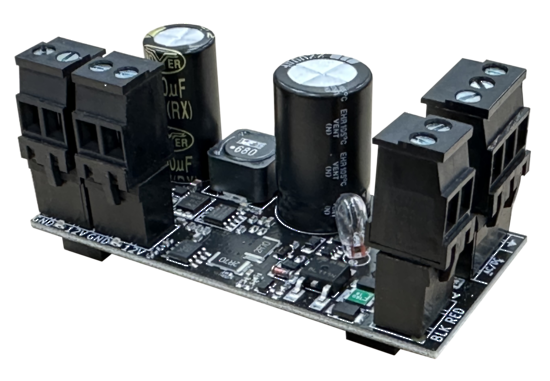

AAP 1.4 Amp Power Supply Module for (ESL-2 and EC-i expander range)

Compact plug in power supply for EC-A2, EC-Z8 & EC-04 expander modules. Provides expander & peripheral products up to 1.4A of current with battery charging & back up Each EC-PSU2 sends battery, AC & supervision status directly to the ESC control panel for local or central station monitoring

Features

Input – 15-24VAC or 24VDC

Output – Up to 1.4A @ 13.8VDC

OTE

V(RX)

Battery charging – 250mA

Dynamic battery monitoring

AC monitoring

Supervision from EC control panel

Thermal output protection

Passes power to primary board

5 year warranty

Dimensions – 78 x 36 x 4lmm
