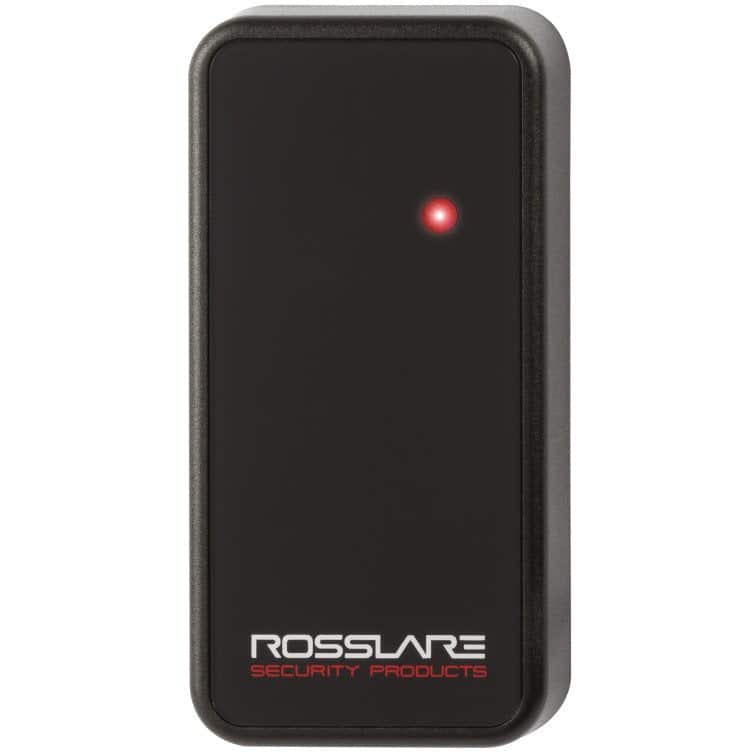

AY-K6255 – ROSSLARE AY-K6255 CSN SELECT™ SMART CARD READER

The CSN SELECT? AY-K6255 is a multi-credential technology contactless smart card (13.56 MHz) reader for use in access control system solutions. The reader has the flexibility to read the Card Serial Number (CSN) from many smart card RFID standards including ISO14443A/B, ISO15693, and ISO18092, perfect for transitioning from one technology to another. UV resistant and with an IP65 rated sleek and modern design, the reader can be used comfortably in any installation environment whether indoors or outdoors.

Read the CSN from the following smart cards: ISO14443A ? MIFARE® Ultralight® Nano /Ultralight EV1/ Ultralight C? MIFARE Classic® / Classic EV1? MIFARE Plus® S / SE / X / EV1? MIFARE DESFire® EV1 / EV2? NFC N?TAG / Card Emulation ISO14443B ? China National ID ISO15693 ? HID® iClass®, PicoPass, iCode, LEGIC ISO18092 ? SONY® FeliCa® (Hong Kong Octopus)

ISO14443A ? MIFARE® Ultralight® Nano /Ultralight EV1/ Ultralight C? MIFARE Classic® / Classic EV1? MIFARE Plus® S / SE / X / EV1? MIFARE DESFire® EV1 / EV2? NFC N?TAG / Card Emulation

ISO14443B ? China National ID

ISO15693 ? HID® iClass®, PicoPass, iCode, LEGIC

ISO18092 ? SONY® FeliCa® (Hong Kong Octopus)

Multiple mounting options including micro-mullion, mullion, US gangbox and UK/Asia gangbox

Standard reader outputs the Wiegand CSN data in Wiegand 26-Bit format, with other Wiegand formats available upon request

PROFESSIONAL GRADE FEATURES

Sleek and modern design

Customizable control lines available with a firmware update can enable hold line ignore or buffered functionality

Tri-colored LED operation

Optical wall tamper detection

IP65 rated and made of tough polycarbonate UV-resistant plastic

Comes with mounting template and installation kit for easy installation
