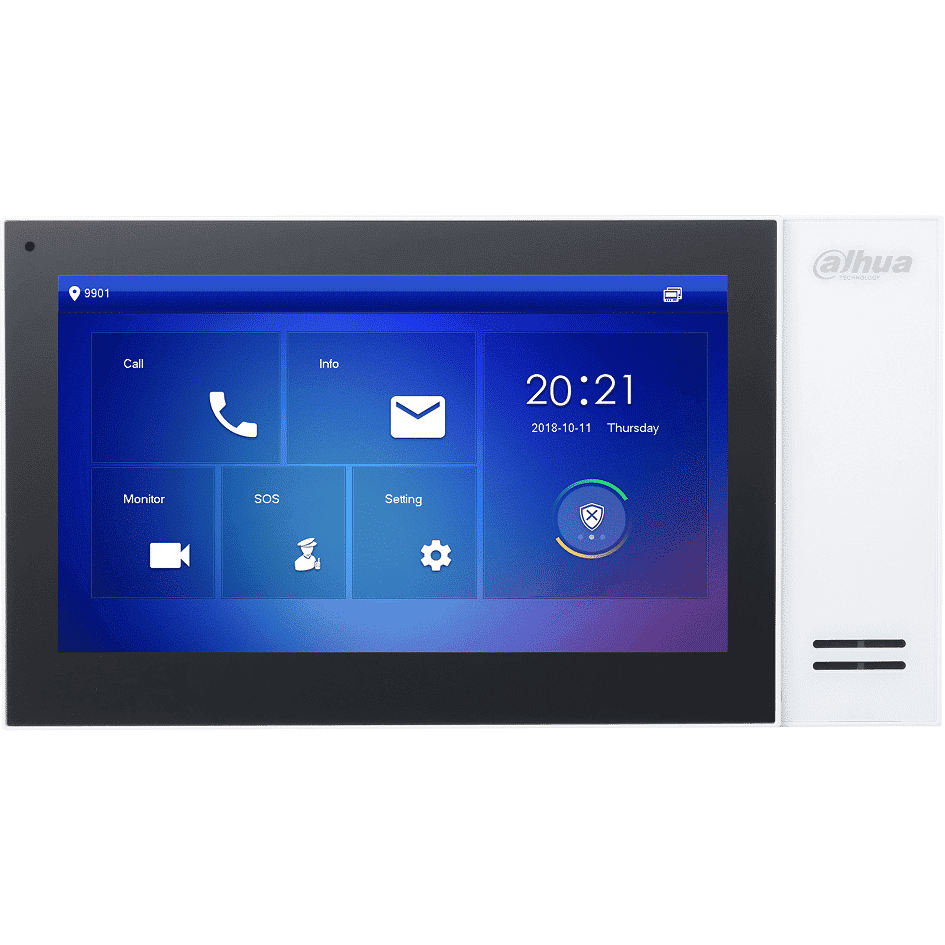

DAHUA IP POE WHITE VILLA INDOOR MONITOR 7 INCH FOR DHI-KTP01

7″ TFT Capacitive touch screen, 1024 x 600

IPC surveillance

Alarm integration

High performance & Cost-effective

Embedded 8GB SD card

Support standard PoE

Specifications Technical Speci?cation Main Processor High performace embedded processor Operating System Embedded LINUX OS Screen Type Capacitive screen Display 7-inch TFT screen Resolution 1024 × 600 Video Compression H.264 Audio Compression G.711A/G.711U/PCM Audio Input 1 channel all-direction microphone Audio Output Built-in 1.5W loudspeaker Audio Mode Support dual-way bidirectional talk Audio Enhancement Support echo cancellation/DNR Audio Bit Rate 16 kbps Communication Mode Full digital Information Release Support to receive and view notifications issued by center Leave Videos or Text Messages Support DND Mode Support to set DND period Sub-station Quantity 9 Alarm Input 6 channel (switch quantity) Alarm Output 1 channel Network 1 RJ-45 SOS Alarm Support Casing PC+ABS Appearance Color Appearance Color Power Supply Standard PoE DC 12V 1A Installation Wall mount Accessories Default bracketDefault alarm cable Dimensions 119.6 mm × 221.5 mm × 21.5 mm (4.71″ × 8.72″ × 0.85″) Operating Temperature -10°C to +55°C (+14°F to +131°F) Operating Humidity 10%RH-95%RH Power Consumption Standby?4W, work?6W Gross Weight 0.35 Kg (0.77 lb) Power supply mode PoE Storage Support Micro SD, maximum memory capacity 32 G, standard memory capacity 8 G

Specifications

Technical Speci?cation

Main Processor

High performace embedded processor

Operating System

Embedded LINUX OS

Screen Type

Capacitive screen

Display

7-inch TFT screen

Resolution

1024 × 600

Video Compression

H.264

Audio Compression

G.711A/G.711U/PCM

Audio Input

1 channel all-direction microphone

Audio Output

Built-in 1.5W loudspeaker

Audio Mode

Support dual-way bidirectional talk

Audio Enhancement

Support echo cancellation/DNR

Audio Bit Rate

16 kbps

Communication Mode

Full digital

Information Release

Support to receive and view notifications issued by center

Leave Videos or Text Messages

Support

DND Mode

Support to set DND period

Sub-station Quantity

9

Alarm Input

6 channel (switch quantity)

Alarm Output

1 channel

Network

1 RJ-45

SOS Alarm

Casing

PC+ABS

Appearance Color

Power Supply

Standard PoE DC 12V 1A

Installation

Wall mount

Accessories

Default bracketDefault alarm cable

Dimensions

119.6 mm × 221.5 mm × 21.5 mm (4.71″ × 8.72″ × 0.85″)

Operating Temperature

-10°C to +55°C (+14°F to +131°F)

Operating Humidity

10%RH-95%RH

Power Consumption

Standby?4W, work?6W

Gross Weight

0.35 Kg (0.77 lb)

Power supply mode

PoE

Storage

Support Micro SD, maximum memory capacity 32 G, standard memory capacity 8 G
