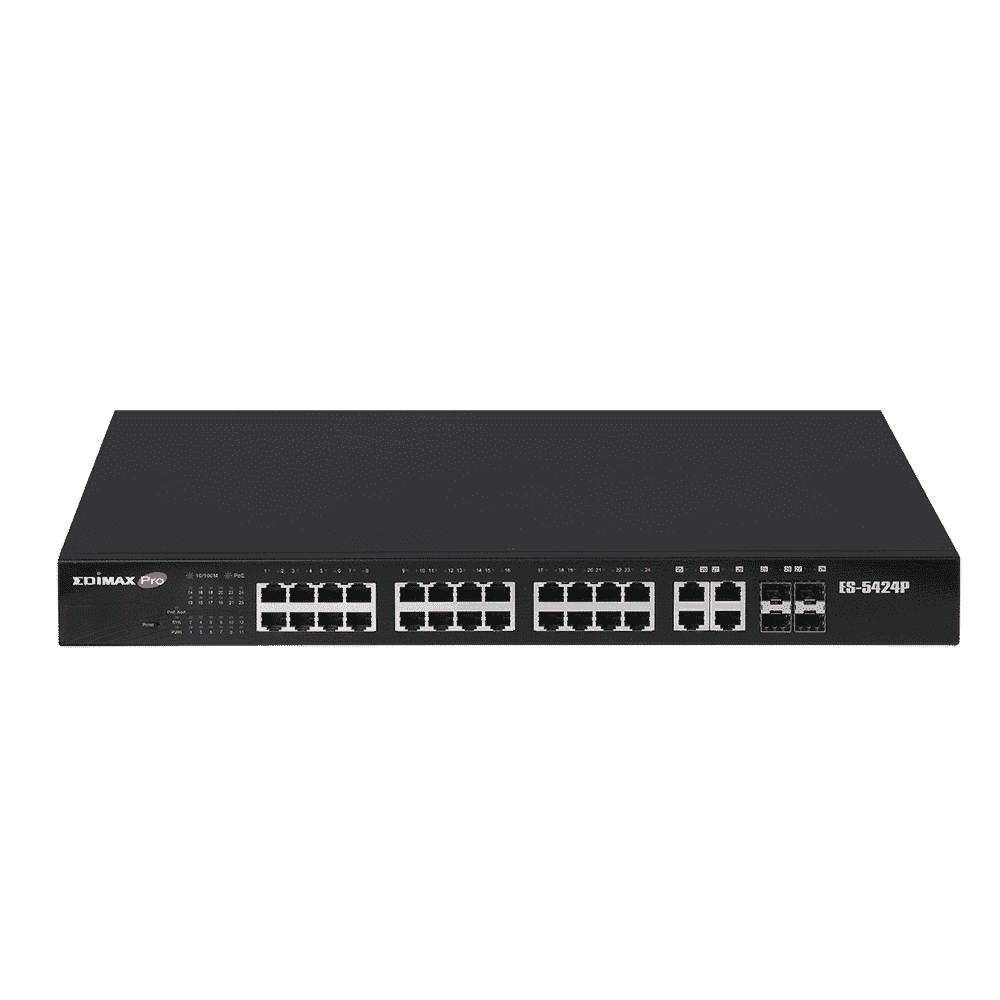

EDIMAX 24RT 10/100M POE+ WEBSMART SWITCH + 4 GIGA SFP (28
Twenty-four Fast Ethernet ports and four Gigabit RJ45/SFP combo ports.
IEEE 802.3af/at PoE compliant.
Up to 30W per port (total power budget: 280W) for powering PoE-enabled devices.
PoE long range mode with Ethernet cable to extend up to 200 meters.
Auto-detection of powered devices (PD) and power consumption levels.
PoE powered devices (PD) alive check to enhance the reliability of the network.
Power backfeed protection to avoid damaging the PoE ports.
DHCP snooping to protect the integrity of legitimate DHCP server and its operations.
Surge Protection 6KV to avoid the damage of the switch and connected devices.
Supports SNMP v3, Access Control List (ACL), QoS, CoS, STP, 802.1Q VLAN, IPv4/IPv6, Port Trunk, IGMP v1/v2/v3 Snooping and Mirror.
12.8Gbps switch capacity.
16K MAC address table and jumbo frame support up to 9KB.
19-inch 1U rack-mount design.
Specifications
HARDWAREPorts24 x RJ45 10/100Base-T Fast Ethernet ports4 x Gigabit RJ45/SFP combo portsTransmission MethodStore and forwardButtonsReset buttonLED IndicatorsPer Port: Link/ActPoE: Act/StatusPer Unit: PowerPower Input100-240V AC, 50-60 Hz, internal power supplyTotal Power Budget280WDimensions (L x W x H)441 × 270 × 45 mmWeight3.53 kgPERFORMANCESwitching Capacity12.8GbpsMAC Address16KBuffer Memory1M bitJumbo Frames16KBFiltering/Forwarding Rates1000Mbps port ? 1,488,000pps100Mbps port – 148,800pps10Mbps port – 14,880ppsPOWER OVER ETHERNETStandardIEEE 802.3af (PoE), IEEE 802.3at (PoE+)Power OutputUp to 30W per portPin Assignment1/2(+), 3/6(-) End-Span (mode A)Available Power Budget240WManagementPoE status, PoE on/off, PoE PD alive check, per port priority settingLong RangeEnable long range mode at 10Mbps for cable distance up to 200 metersBackfeed ProtectionBuilt-inSMART FEATURESQuality of Service (QoS)Rate limiting on packets sent and received by an interfaceEight queues on each portWRR, SP, WRR+SP queue scheduling algorithmsRe-marking of the 802.1p priority and DSCP priorityRate limiting in each queue and traffic shaping on portsClass of Service (CoS)IEEE 802.1p class of service (SPQ, WRR)Port-based CoSIP TOS precedence802.1p VLAN Information based CoSDSCP based CoSTCP/UDP Based CoSSpanning TreeIEEE 802.1d Spanning Tree Protocol (STP)IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)VLANUp to 200 VLANs and 4096 VLAN IDs802.1Q tag-based VLANPort-based VLANGVRPIPV6IPv6 over Ethernet (RFC 2464)Static IPv6 address and prefix lengthStatic IPv6 default gatewayIPv6 duplicate address detectionPort TrunkingIEEE 802.3ad LACP Trunk-Static trunk up to 6 trunk groupsIGMP SnoopingIGMP v1/v2/v3 snoopingMirrorPort mirroring both on ingress and egress trafficSecurityManagement AccessStorm ControlDynamic ARP InspectionDHCP SnoopingManagementUser Interface: Web-based managementUser Account: Login account configurationFirmware Upgrade: Firmware upgrade by WEBSyslog: Support event log, alarm log and security logENVIRONMENTTemperatureOperating: 0 ~ 50?Storage: -40 ~ 70?Humidity (Non-condensing)Operating: 10 ~ 90%Storage: 10 ~ 90%STANDARDS COMPLIANCEStandardsIEEE 802.3 10BaseT EthernetIEEE 802.3u 100BaseTX Fast EthernetIEEE 802.3ab 1000BaseT Gigabit EthernetIEEE 802.3z 1000BaseSX/LXIEEE 802.3af Power over Ethernet (PoE)IEEE 802.3at Power over Ethernet Plus (PoE+)IEEE 802.3x Full-duplex and flow controlIEEE 802.1p Quality of Service (QoS)IEEE 802.1Q Virtual LANs VLANsIEEE 802.1d Spanning Tree Protocol(STP)IEEE 802.1w Rapid Spanning Tree Protocol(RSTP)IEEE 802.3ad Link Aggregation Control Protocol (LACP)CertificationsFCC Class A, CE*Maximum performance, actual data rates, and coverage will vary depending on network conditions and environmental factors. *Actual viewing resolution and frame rate of network cameras depend on connection speed.*Product specifications and design are subject to change without notice.
