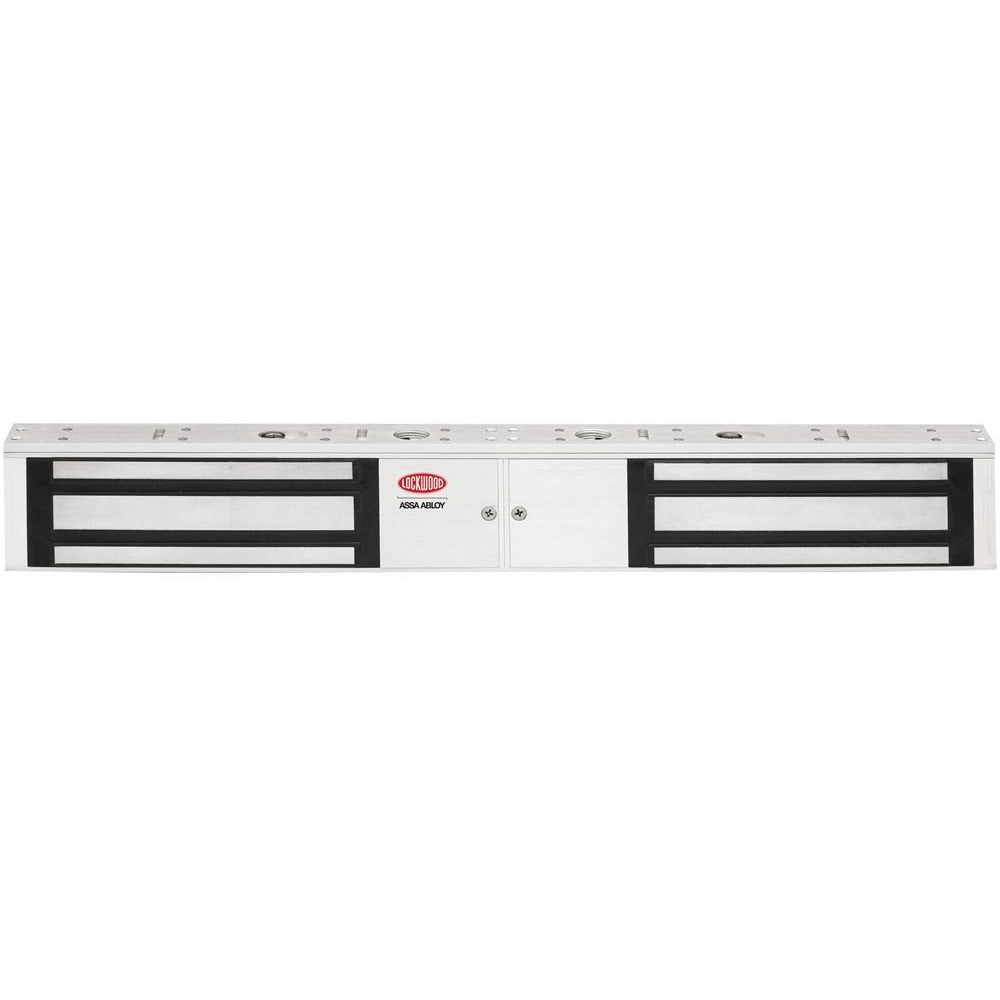

LOCKWOOD EMZ8 E/MAGNET 12/24VDC DOUBLE MONITORED

The Double Series Electromagnetic Locks operate with holding forces from 500kg up to 1160kg. Covering a range of applications these magnets are ideal for applications from access ways through to high use commercial swing doors. With fixing options including wood, aluminium and steel constructions, as well as glass door applications, the range caters to most electromagnetic needs.

Features

Fail-safe: unlocks when power is removed

Easy installation: suitable for both new and retrofit usage

High holding force: refer to the technical data overleaf

Self-alignment: armature plate pivots to accommodate door drop

Silent operation: no humming or buzzing

Dual voltage: site selectable 12 or 24 Vdc

Monitoring; Hall-Effect and Reed Switch monitoring on all models

Instantaneous release: Smart electronics on the Z Series electromagnets eliminate residual magnetism.

Applications

Aluminium doors

Double swing doors

Access control

Surface mount for inswing and outswing doors

Monitoring

Hall / Bond MonitoringThis indicates that the lock is powered and that the armature plate is in position and magnetically bonded (it monitors if the magnet is locked)

Reed switch monitoringAn integrated reed switch monitors the door position separately (it monitors the position of the door)

Standards and Compliance

Successfully fire rated up to 4hrs on fire door assemblies in accordance with AS1905.1. 2005 (Part 1: Fire resistant door sets)

CE Approved

C-Tick Certified

Specification

Z8 MagnetHolding Force 1100kg – 1160kgDimensions (L)532 x (H)72 x (D)40 mmVoltage 12Vdc/ 24Vdc ±10%Current 1024mA @ 12Vdc 512mA @ (12Vdc)Monitoring Hall-Effect/Bond sensing Reed SwitchOperating Temperature -10 to 55 DegreesOperating Humidity 0 – 95%Holding force is measured directly between armature and magnet, holding force on the door may vary depending on the leverage created.Specification StatementThe Double Series Electromagnetic Lock should be constructed in an aluminium base with heavy duty electromagnet. The range only operates in fail safe mode and relies on a secondary lock or battery backup system. The lock needs to be equipped with “smart electronics” that have zero residual magnetism, (instantaneous release). This is crucial for correct operation. _________________________________________________________
