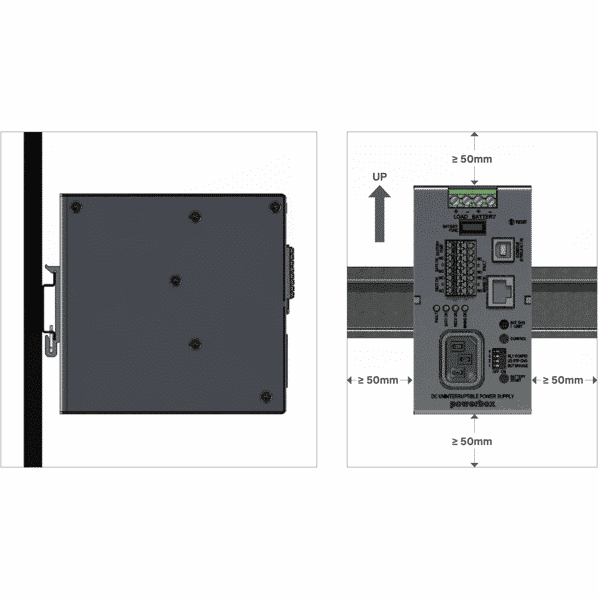

POWERBOXSMART DC UPS 27.6V @ 5A, DIN-RAIL MOUNTING W. AC CON

Australian Made

Low noise output

Independent rectifier & battery charging current limiting

Front panel adjustable battery charging current limit

Advanced monitoring and control

2 step float charger or 3 step fast charger and switch selectable

Automatic battery-connections and fuse-fail testing

Battery low voltage disconnect switch and electronic circuit breaker in battery positive

Front panel battery start button

Optional battery temperature probe for battery float voltage temperature compensation

Automatic and manual battery condition testing (BCT)

Full rated output for Ta= 0 to 50°C derated to 50% at Ta= 70°C

Four form-C alarm relays and alarm/ status LEDs: Mains OK

Rectifier OK

Battery OK

and Fault

Optional Ethernet interface with embedded HTML webpage server and SNMP V1 support

Screw terminal and IEC60320 C14 appliance inlet options
