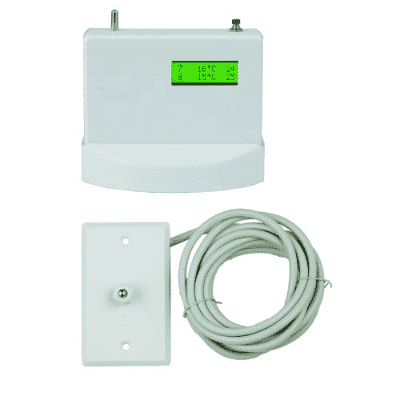

TEMPERANGE DUAL TEMPERATURE ALARM, WALL/DESK MOUNT

Desk top or wall mount installation for the local unit

Simultaneous operation of local and remote sensors

Standalone or works with alarm panel

Easy to set and adjust Low and High temperature limit

Separate alarm outputs for low and high temperature

Two line LED display to show both local and remote temperature

Audible alarm can be easily silenced

The system can be temporarily turned off easily allowing the user to perform maintenance without generating an alarm

Wall mounting faceplate included for the remote sensor

Specs

Voltage and current: 9-15VDC; 35mA standby, 300mA max.

Accuracy: +/- 1.8deg C

Local operating temperature: 0deg – 60deg C

Two alarm relays: SPDT; relay 1-low temperature and relay 2-high temperature

Audible alarm: 0 – 90dB/m, adjustable

Dimensions: 130 x 90 x 35mm

Remote sensor operating temperature: -40 – 60deg C

The remote senor is supplied with a 5m cable and a GPO mounting faceplate.

The length of the cable can be extended up to 100m
