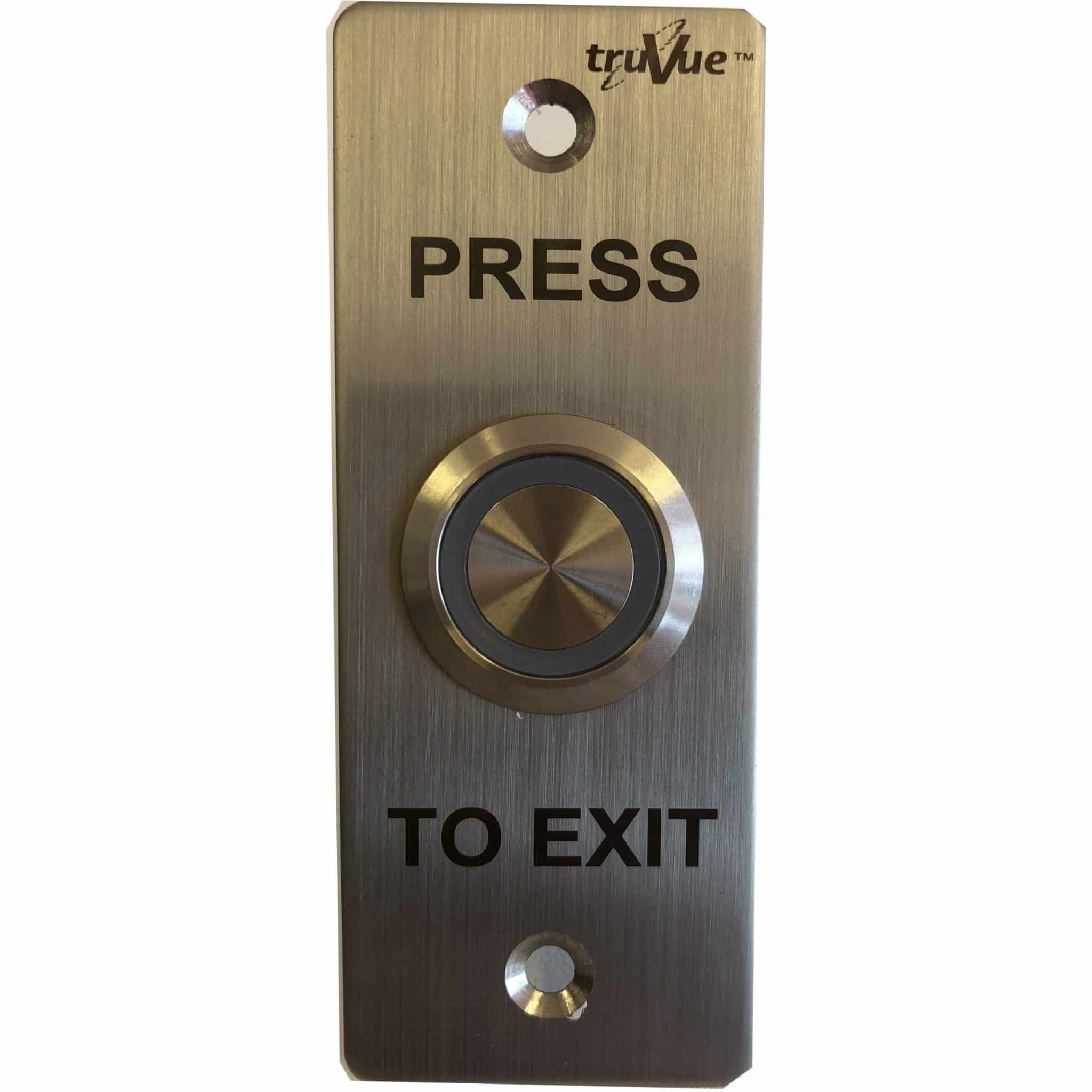

TV83522L – TRUVUE NO/NC/COM,EXIT BUTTON,90X35MM,GREEN LED

Specification

Dimensions: 90L*35W*40H(mm)

Contact Rating: 3A/125-250VAC

Output Contact: NO/NC/COM

Waterproof Grade: IP67

Operating Temperature: -20?~+55?(14-131F)

Operating Humidity: 0-95%(relative humidity)

Power: 12VDC & 24VDC

Logo: Customizable

Installation Mode: Hollow Door

Panel: 1.7mm Thick 304 Stainless Steel (Wire Drawing)

Model: S83522L

Button: Stainless Steel

Installation Diameter: 22mm

Weight: 0.07kg Package Quantity: 100PCS/7.5kg/56*37*47cm/ctn
