ZK Multi-Tech Card Access Control Terminal

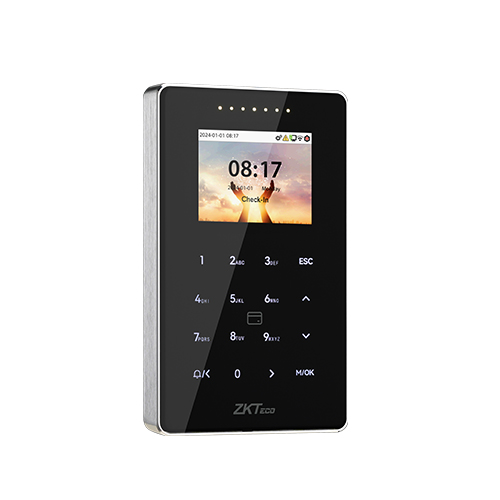

SC800 is a Linux-based and waterproof RFID Access Control terminal that is designed for outdoor application. This terminal adopts a metal midframe housing and a 2.5D tempered glass panel, supporting IP65 waterproof and IK04 vandal proof. Besides, SC800 has a 2.4 inch color screen and a hidden touch keypad to enhance the touchless unlocking experience. SC800 offers the Multi-tech RFID module that supports 125kHz and 13.56MHz card, support HID Prox and HID iclass Multi-Tech RFID Module. In addition, SC800 supports Access Control push communication protocol and it is compatible with ZKBio CVAccess software. This terminal also includes a Wiegand Input port to connect the external proximity reader and can be act as controller’s external reader using a Wiegand Output port.
Specifications:
Display: 2.4 inch TFT LCD Color Screen Operation System: Linux Card Capacity: 50,000 (Optional: 100,000) Logs Capacity: 200,000 (Optional: 1,000,000) User Password: 6 Digits RFID: Standard Module: ID Optional Multi-Tech Card Module: Module 1 Support ID&IC& DESFire EV1/EV2; Module 2 Support ID&IC& DESFire EV1/EV2&Feliac&Legic&HID Prox; Module 3 Support ID&IC& DESFire EV1/EV2&Feliac&Legic&HID Prox&HID iclass; Communication: TCP / IP, Wiegand, RS485 (for RS485 readers), OSDP (Ver2.1.7), RS232 (only for printer), Wi-FI (Optional) Wired Network: 10 / 100 Mbps, Auto MDI / MDI-X Access Control Interface: 3rd Party Electric Lock, Door Sensor, Exit Button, Alarm, Doorbell Auxiliary Interface: 1 AUX input Indication Light: Breathing light: White, Status light: Red / Green Hardware: 1GHz Dual Core CPU, DDR2 64M, Flash 256M Data Protection: AES-256 Encryption Keypad: Hidden Touch Keypad Wiegand Signal: Wiegand In / Out Standard Functions: ID card, Web sever, Automatic Status Switch, Self-Service Query, DST, 14 Digit User ID, Scheduled Bell, Anti-passback, HTTPS, Protocol convert (AC push to TA push) Optional Functions: Wi-Fi, Multi-tech Card Module, Printer Power Supply: DC 12V 3A Operating Temperature: -10°C to 55°C (14°F to 131°F) Storage Temperature: -20°C to 60°C ( -4°F to 140°F) Operating Humidity: 10% to 90% RH Dimensions (L*W*D): 143*85*19.8 mm Protocol: A & C Push (default) / T&A Push Supported Software: ZKBio CVAccess
